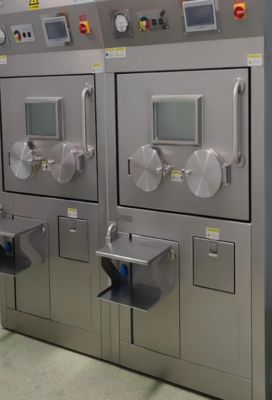

GMP Standard Synthesis Hot Cell for Radiopharmaceutical Production with Lead Equivalent Shielding and Stainless Steel Structure
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Jovi |
| 모델 번호 | JVVMED-HC |
| 문서 | JVVMEG-HCFH50-PET.pdf |
| 최소 주문 수량 | 1 세트 |
| 가격 | $35000~$95623 |
| 포장 세부 사항 | 나무 상자에서 |
| 배달 시간 | 결제를 받은 후 25일 근무일 |
| 지불 조건 | 미리 T/T |
| 공급 능력 | 100SETS/YEAR |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 청결 | 클래스 ABC | 리드에 해당합니다 | 10mmpb 20mmpb 50mmpb 100mmpb |
|---|---|---|---|
| 재료 | 스테인레스 스틸 구조, 납 벽돌 | 운영 시스템 | 인공 지능 제어 |
| 정제 방법 | 활성 탄소 필터, HEPA 여과, | 소독 방법 | 자외선 및 오존 |
| 대체 옵션 | 수동 디스펜서, 자동 디스펜서 | 제품 이름 | Radiopharmaceutical 생산 라인 GMP 표준을위한 합성 핫 셀 |
| 강조하다 | Lead Equivalent Shielding Synthesis Hot Cell,Stainless Steel Structure Radiopharmaceutical Production Hot Cell,Lead Bricks Shielding Hot Cell |
||
제품 설명
GMP Standard Synthesis Hot Cell for Radiopharmaceutical Production
The synthesis hot cell (also known as a synthesis shielding box or hot cell) is the core equipment in the radiopharmaceutical production process. Its design ensures the safety of operators, the environment, and the product itself, featuring Class A/B/C cleanliness standards with real-time dose monitoring, HEPA filtration, and active carbon filtration in a negative pressure environment.
Key Characteristics
Radiation Shielding
The most critical feature, effectively shielding high-energy gamma rays or neutrons emitted by radionuclides.
- Materials: High-density lead (Pb) bricks or plates as primary shielding material, with lead glass for viewing windows and steel for structural support
- Thickness: Precisely calculated based on radionuclide type and activity, ranging from a few centimeters to several tens of centimeters to ensure radiation dose rates remain below safe regulatory limits (typically below 2.5 μSv/h)
Containment, Negative Pressure & HEPA Filtration
- Containment: Highly sealed system to prevent leakage of radioactive aerosols or volatile substances
- Negative Pressure System: Maintains internal air pressure lower than surrounding room to prevent contaminant escape
- HEPA Filtration: Multiple-stage High-Efficiency Particulate Air filters capture radioactive particles, with activated carbon filters for volatile radionuclides
Remote Manipulation & Automation
Enables operation without direct hand contact with internal items:
- Manipulators: Master-slave manipulators or electric-powered manipulators controlled by joysticks/touchscreens
- Full Automation Systems: Computer-program-controlled automated modules perform entire synthesis processes, reducing human intervention and improving repeatability
Product Protection & Aseptic Environment
Meets stringent standards for sterile, pyrogen-free radiopharmaceuticals:
- Internal Environment: Clean environment meeting Grade C or A (ISO Class 7 or 5) standards
- Transfer Systems: Dedicated pass-through boxes with interlocking mechanisms and UV lights
- Surface Materials: Smooth, seamless stainless steel surfaces resistant to frequent disinfection
Shielding Viewing Window
Special lead glass windows provide necessary transparency while offering equivalent radiation shielding to lead walls, typically multi-layered and very thick.
Utilities Integration
Comprehensive utility interfaces for production:
- Electrical: Powers instruments, manipulators, lighting
- Pneumatic: Supplies compressed air or inert gases
- Vacuum: Used for filtration or liquid transfer
- Cooling/Ventilation: Independent systems to maintain stable temperature
Monitoring & Safety Systems
- Radiation detectors continuously monitor internal levels
- Pressure monitoring displays negative pressure status with alarm triggers
- Temperature and smoke sensors prevent safety incidents
- Safety interlocks on doors and pass-through boxes prevent radiation leakage
A radiopharmaceutical synthesis hot cell is a complex engineering system integrating radiation shielding, containment, remote/automated operation, and sterile control. Modern designs emphasize high integration, automation, and modularization to reduce operational complexity and radiation exposure risks while maintaining strict GMP quality standards.
